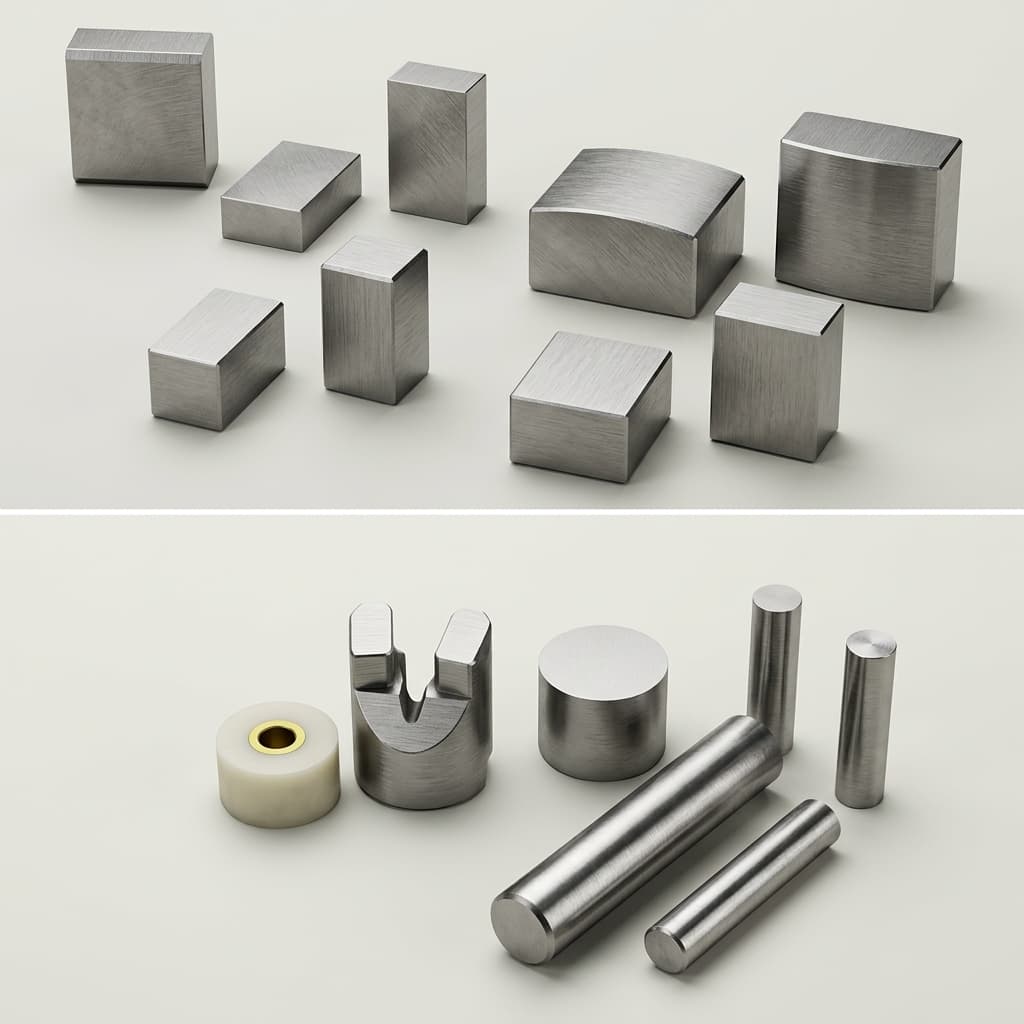

SmCo Magnets in Downhole MWD/LWD Tools: A Reliability Guide

Measurement While Drilling (MWD) and Logging While Drilling (LWD) tools operate in the most hostile environments on Earth. When a downhole mud motor generator fails at 20,000 feet due to magnet demagnetization, the financial cost of the trip out (NPT - Non-Productive Time) can exceed $100,000 per day.

For these applications, NdFeB is completely unusable. Even standard SmCo5 falls short. Sm2Co17 (Samarium Cobalt 2:17) is the only viable permanent magnet material capable of surviving the 200°C to 300°C+ ambient temperatures while sustaining the intense shock and vibration of the drill string.

The Downhole Stress Matrix

Specifying magnets for Oil & Gas tools requires accounting for three simultaneous failure vectors:

Extreme Thermal Soak: Ambient temperatures frequently hit 200°C and can spike to 300°C+ in HPHT (High Pressure, High Temperature) wells.
Reverse Magnetic Fields: In downhole turbine generators, the stator coils generate strong opposing magnetic fields (Armature Reaction) that push the rotor magnets toward their demagnetization knee point.
Severe Mechanical Shock: Stick-slip, bit bounce, and lateral vibrations can easily shatter unprotected brittle intermetallic compounds like SmCo.

Thermal Margin & Armature Reaction (Visualized)

In MWD generators, the combination of 250°C heat and opposing fields from the stator pushes the operating point dangerously close to the knee. You must specify high-Hcj Sm2Co17 to prevent irreversible loss.

Key Procurement Rules for MWD Magnets

1. Mandate High-Hcj Sm2Co17 Grades

Never accept generic "SmCo" or "Sm2Co17" on a quote. You must specify the exact grade with a confirmed Intrinsic Coercivity (Hcj) of >25 kOe at room temperature, ensuring the knee point of the B-H curve remains completely safe even at 250°C.

2. Pre-Aging (Thermal Stabilization)

To eliminate irreversible flux loss during the first trip downhole, demand that your supplier performs a pre-aging thermal cycle. The magnets should be baked at 10°C to 20°C above your maximum expected operating temperature for 24-48 hours. This forces any early-life irreversible loss to happen in the factory, not in the wellbore.

3. Encapsulation & Edge Protection

SmCo is highly brittle. A 100G shock downhole will turn an exposed magnet into powder.

Never press-fit bare magnets.
Use Titanium or Inconel rotor sleeves.
Specify rigorous chamfering (e.g., 0.5mm x 45° or fully radiused edges) on all magnet corners to eliminate stress risers.
Use high-temperature potting compounds (like high-Tg epoxies or PEEK) to secure the magnets within the rotor housing.

Field Evidence Snapshot

Application: MWD Mud Pulser Valve Actuator
Failure Mode Observed: Valve sticking due to 12% flux loss after reaching 210°C true vertical depth.
Corrective Action: Upgraded from generic Sm2Co17 to a High-Hcj specific grade (YXG-32H) and implemented a 230°C/24hr factory pre-aging protocol.
Result: Zero detectable flux drift in subsequent 500-hour drilling runs; NPT eliminated.

External Standards and References

Next Steps for Oil & Gas OEM Teams

Designing a downhole tool requires magnetic data that goes far beyond standard room-temperature datasheets. You need B-H curves tested at your exact downhole temperature.

Partner with SmCo Supply to run thermal simulations and lock down a grade that will survive the trip.

Contact Engineering for Downhole Grade Mapping
