SmCo Magnets for Gas Turbine Speed Sensors: Engineering & Selection Guide
A deep-dive execution brief for selecting, protecting, and validating SmCo magnets in high-temperature gas turbine speed sensor applications.
Gas turbine speed sensors (both Variable Reluctance and Hall Effect) operate in some of the most punishing thermal and vibrational environments in modern engineering. While NdFeB magnets fail rapidly above 150°C, Samarium Cobalt (SmCo) provides the necessary thermal headroom.
However, simply specifying "SmCo" on a drawing is not enough. Without precise grade mapping, irreversible flux loss and mechanical chipping will lead to sensor drift or catastrophic failure.
The Failure Matrix: Why Turbine Sensors Drift
Before grade selection, engineering teams must understand the root causes of signal degradation in high-speed turbine environments.
| Failure Mode | Root Cause | Prevention Strategy |
|---|---|---|
| Irreversible Signal Drop | Exposure to thermal spikes exceeding the knee point of the demagnetization curve. | Specify Sm2Co17 with high Hcj margin; conduct high-temperature stabilization (pre-aging) before assembly. |
| Dynamic Signal Drift | Reversible temperature coefficient of induction (RTC) causing varying flux at different temperatures. | Calibrate sensor algorithms using specific RTC values (typically -0.03% to -0.045%/°C for SmCo). |
| Mechanical Fracture | SmCo's inherent brittleness exposed to high-frequency turbine casing vibration. | Implement mechanical retention (capsules/sleeves) and specify precise chamfers to remove stress-concentration edges. |
Sensor Design Decision Tree (Visual)
Use this logic flow to lock your baseline assumptions before issuing an RFQ.
Grade Selection: SmCo5 vs Sm2Co17 in Turbines
For gas turbine speed sensors (often mounted directly on the gearbox or compressor casing), the ambient temperature frequently exceeds 200°C, with thermal soak back pushing temperatures even higher after shutdown.
- Sm2Co17 (2:17) is the industry standard for aerospace and industrial heavy-duty turbines. It offers an operating ceiling of 300°C to 350°C and a significantly higher Br (Remanence), allowing for a stronger signal output in Variable Reluctance (VR) sensors which rely on magnetic flux crossing the air gap to the gear teeth.
- SmCo5 (1:5) is typically reserved for auxiliary speed sensors positioned further from the hot section (e.g.,
< 200°C), where its superior corrosion resistance without coating may provide a cost advantage, or where extreme miniaturization requires slightly better machinability without chipping.
RFQ Checklist for Turbine Speed Sensor Magnets
To eliminate back-and-forth guessing and secure accurate DFM (Design for Manufacturability) feedback from SmCoSupply, include this specific data in your initial inquiry:
- Continuous and Peak Temperature: Crucial for identifying the correct intrinsic coercivity (Hcj) margin.
- Air Gap Flux Requirement: State the required Gauss/Tesla at the sensor tip, not just the raw magnet grade.
- Geometry and Edge Prep: Specify mandatory chamfers (e.g.,
0.2mm x 45°) on all edges. Sharp edges on SmCo will micro-fracture under turbine vibration, creating loose magnetic debris in the housing. - Pre-Aging Requirements: If your sensor demands zero irreversible loss post-assembly, specify thermal stabilization requirements (e.g., exposing the magnet to 250°C for 24 hours prior to calibration).
Mechanical Integration & Encapsulation
Because Samarium Cobalt is highly brittle, it should never be press-fit directly into a metal sensor housing without compliance.
- Laser Welding / Sealing: Most turbine speed sensors use a stainless steel or Inconel sleeve that is laser-welded shut. The SmCo magnet is housed inside, protected from both mechanical shock and corrosive turbine fluids (Skydrol, jet fuel, synthetic oils).
- Potting: High-temperature epoxies or potting compounds are used to secure the magnet within the sleeve, damping high-frequency casing vibrations.
Field Evidence Snapshot
- Application: Commercial aerospace Variable Reluctance (VR) speed sensor
- Failure Mode Observed: 15% signal drop at 280°C using standard Sm2Co17
- Corrective Action: Transitioned to high-Hcj Sm2Co17 grade and added 250°C pre-aging cycle prior to final assembly.
- Result: Signal drift reduced to <2% across the entire operational thermal band.
Related Internal Guides
External Standards and References
- MMPA Standard Specifications for Permanent Magnet Materials
- SAE Aerospace Standards for Engine Sensors
- IEEE Sensors Council - Industrial Applications
Next Steps
Validating a new gas turbine speed sensor takes months of thermal cycle testing and qualification. Do not risk your project timeline by testing inadequate grades.
Bring your operational envelope to the engineers at SmCo Supply. We will map your temperature and signal requirements directly to a proven Sm2Co17 or SmCo5 grade, complete with tolerance risk-control.
Author
Application Engineering Specialist & Founder at SmCoSupply. Expert in high-temperature samarium cobalt magnet applications and OEM production scaling.
- Reviewed against real RFQ and sample handoff workflows.
- Updated when buyer-side acceptance criteria materially change.
- Intended for engineering and procurement decision support.
Categories
More Posts
SmCo Incoming Inspection Checklist for OEM Teams
A practical incoming inspection checklist for SmCo programs that reduces lot-to-lot variability and shortens supplier feedback loops.

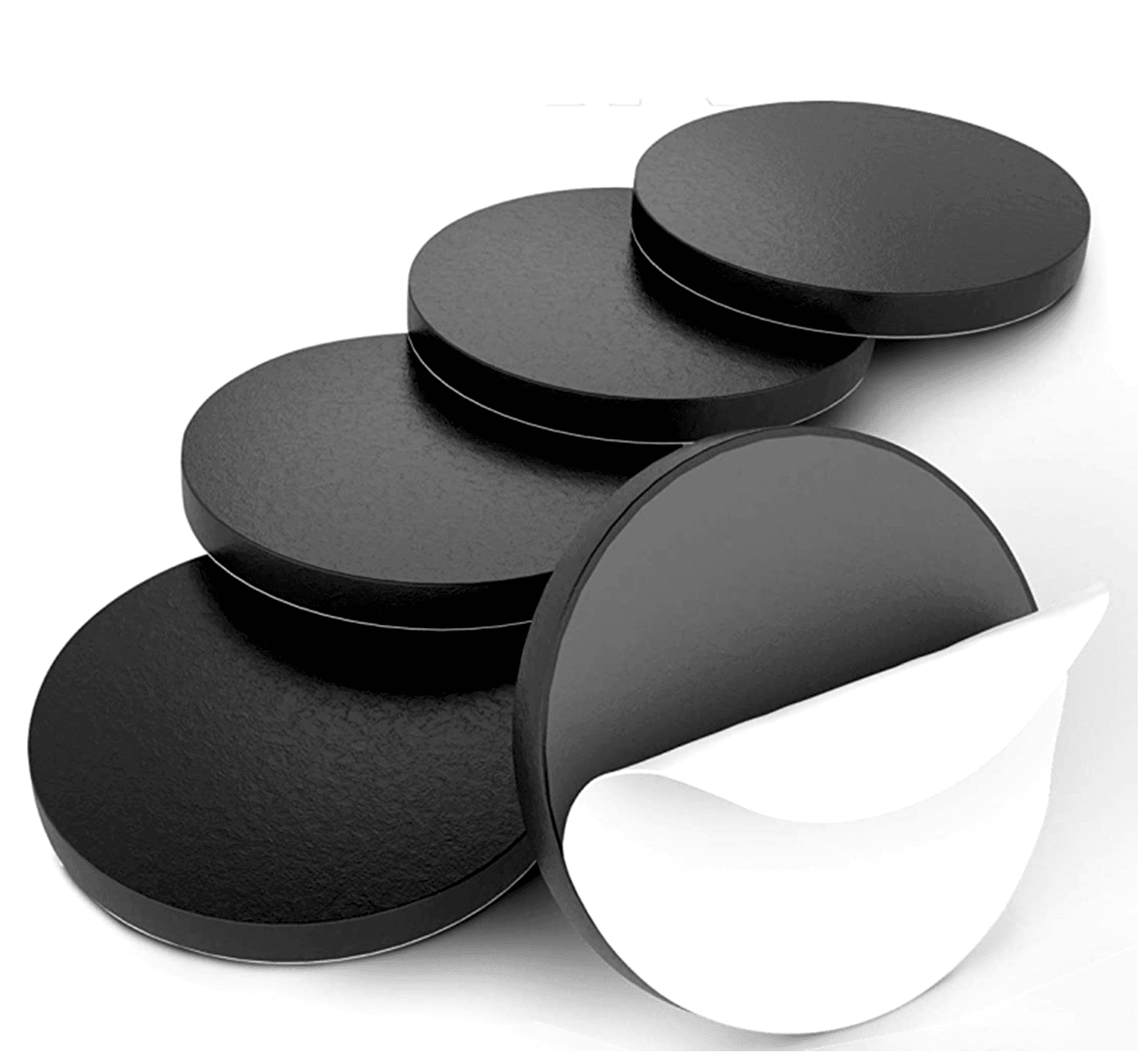

SmCo Machining and Tolerance Risk Control Guide
A risk-control guide for SmCo machining and tolerance planning to reduce brittle-material defects and improve assembly yield.

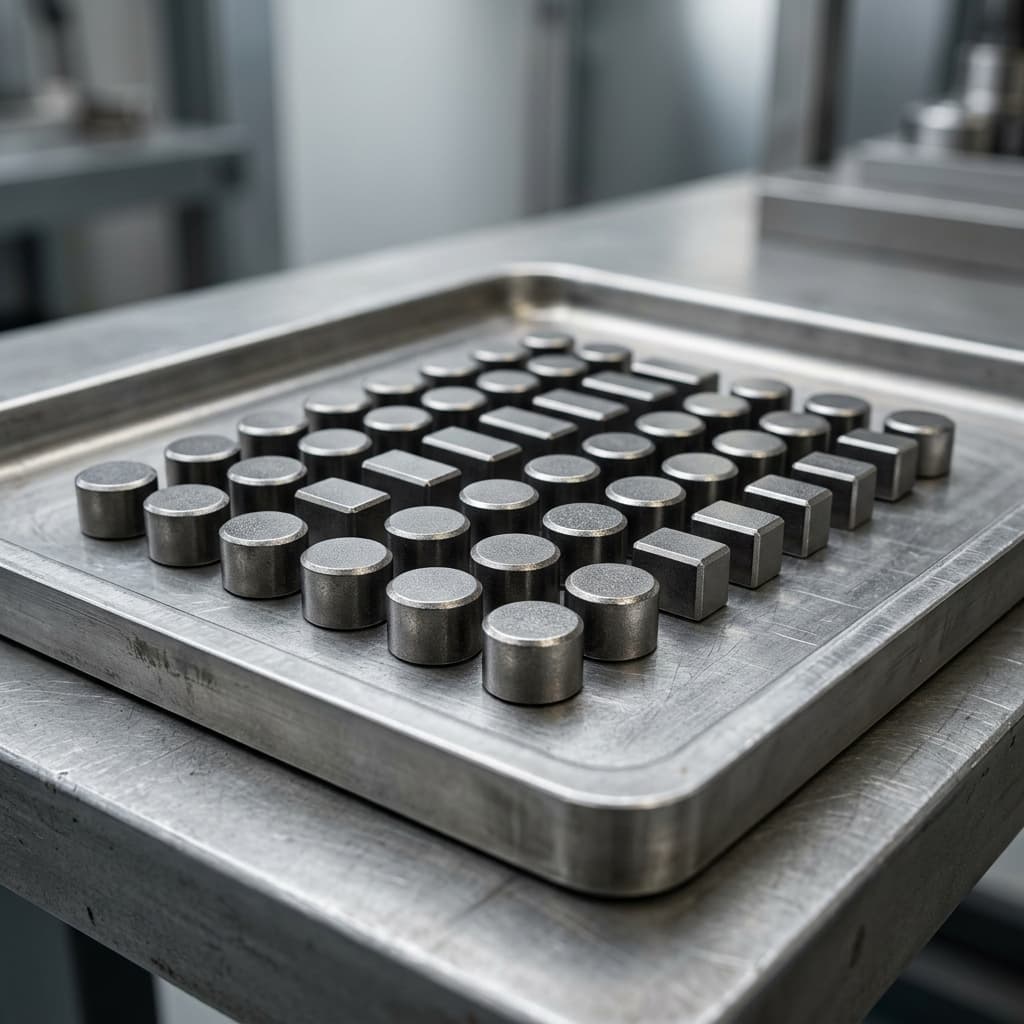

SmCo RFQ Checklist for OEM Buyers
